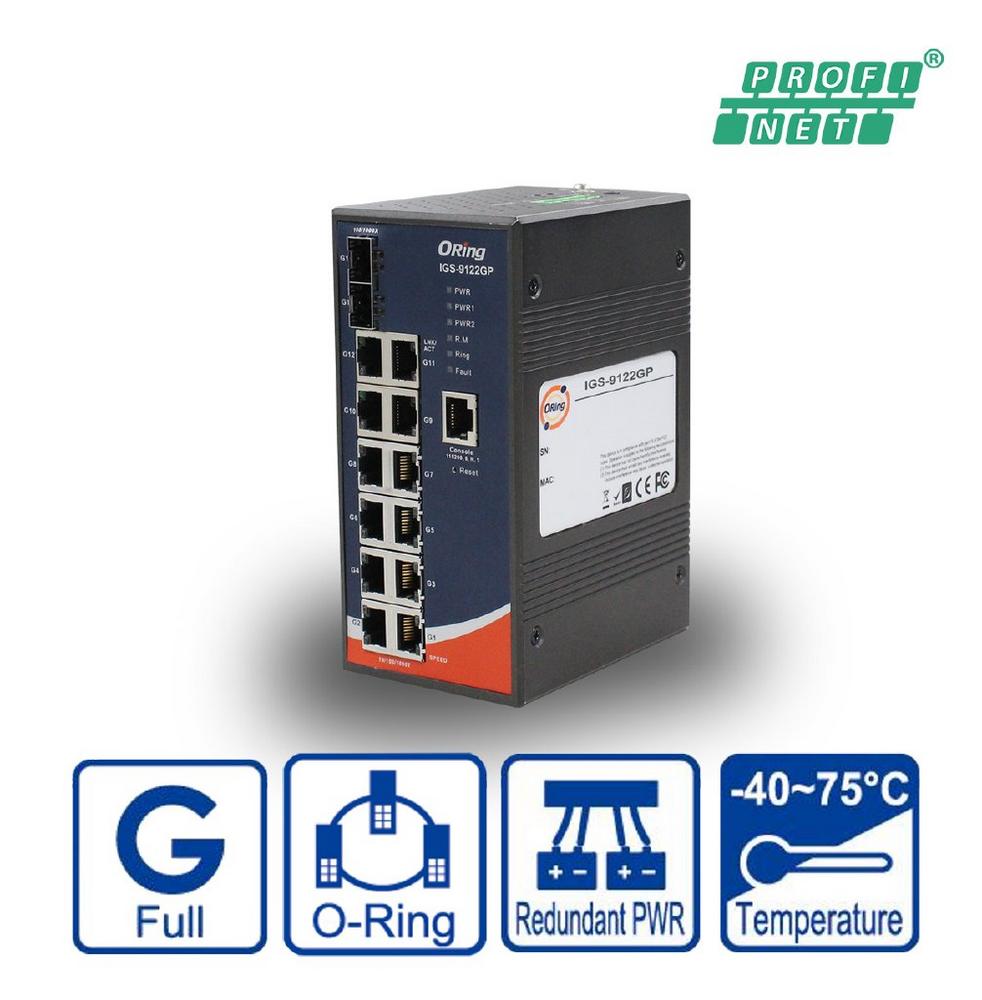

ICP Germany presents the IGS-9122GP-PN, a managed Gigabit Ethernet switch with PROFINET support. This switch is perfectly suited for applications in production plants, manufacturing environments and automation systems. The switch offers twelve 10/100/1000Base-T(X) ports and two 100/1000Base-X SFP ports and requires no more than 75 mm width, 154 mm height and 109 mm depth with its IP30 metal enclosure. Overall, the IGPS-9084GP-LA provides up to 24Gbps of switching bandwidth with a latency of less than 7 µs. For designing secure network connections, the IGS supports Ethernet redundancy protocols such as Open-Ring, O-Chain or O-Ring, with a recovery time of less than 30 ms for 250 link units, as well as MRP. The special feature of the IGS-9122GP-PN is the PROFINET certification. This enables it to meet requirements of demanding industrial automation and control applications. Supporting IEC 62439-2 MRP (Media Redundancy Protocol) and IEEE 1588v2 clock synchronization, as well as IPV6 protocol version, Modbus TCP protocol, HTTPS/SSH protocols for network security, IEEE 802.3az Energy-Efficient Ethernet technology, SMTP client and NTP server protocols, LLDP protocol, and many other features, this switch provides a reliable and efficient network solution.
With IP-based bandwidth management, application-aware QoS management, device binding security function, DOS/DDOS prevention, IGMP v2/v3 (IGMP snooping support), SNMP v1/v2c/v3 & RMON & 802.1Q VLAN network management, ACL, TACACS+ and 802.1x user authentication for security and 9.6K bytes jumbo frame, the switch is the ideal solution for all industrial network requirements. The IGS-9122GP-PN series supports dual power input from 12 to 48VDC and can therefore continue to operate in the event of a power failure using a redundant power supply.

ICP Germany will showcase ORing switches equipped with remote maintenance options, redundant protocols and ring technologies at All about Automation in Düsseldorf, Germany, on October 18 and 19, 2023. For more information, visit booth 255 or email info@icp-deutschland.de
