Where innovation meets application: Fast, secure, and tool-free
The M12 bayonet system not only speeds up the connection process but is also robust, secure, maintenance-friendly, and economical.

With the M12 bayonet, we offer users a tangible improvement in everyday use.

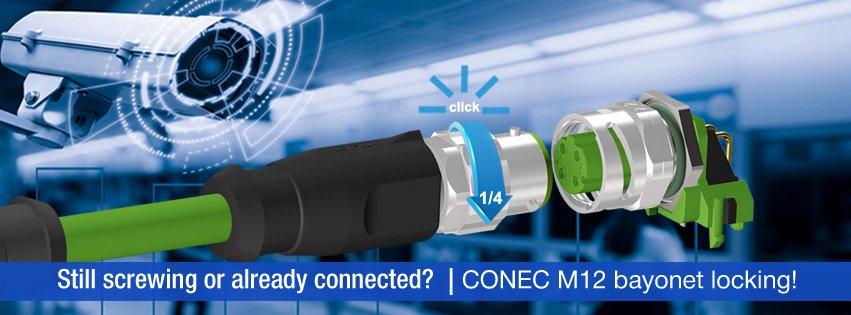

The standout feature is the three-point bayonet mechanism, enabling a fast, secure, and tool-free connection with just a 90° twist—even in confined or poor visible spaces." Clear audible and tactile feedback signals to the user that the connection is properly locked. The system is based on the draft standard IEC CD 61076-2-011/Ed1 and is available in various versions: overmolded, field-attachable and socket connectors.

100% Backward Compatibility
A special highlight: The bayonet socket connectors also feature a standardized M12 thread in the mating area, ensuring full backward compatibility with existing M12 screw connectors. This allows new systems to be easily equipped with the bayonet system on the device side.

Versatile variants for maximum flexibility
Field-attachable connectors with crimp termination in A-, B-, D-, and X-coding – ideal for flexible on-site installations
Overmoulded single ended or connecting cables in A- and D-coding
Socket connector solutions for device-side connections – ranging from PCB socket connectors socket connectors with wire to overmoulded socket connectors with cable.

Versatile application options, e.g. for industrial applications, agriculture or railroad technology

The M12 bayonet system significantly simplifies and speeds up installation processes in industrial applications where frequent tool changes or limited installation space are common.

In industrial robotics, the M12 bayonet enables the quick connection of sensors, actuators, and data lines—even under demanding conditions such as vibration or tight installation spaces.

With its quick installation and maintenance-friendly design, the system offers a smart, reliable alternative to traditional screw connections—perfectly suited for flexible use in today’s fast-paced production environments.

In the agricultural sector, where reliable connectors are essential under harsh environmental conditions—especially in light of the increasing digitalization of modern agricultural machinery — the system also proves its value.
For applications such as GPS-guided steering systems, camera technology, or sensor systems, the robust locking mechanism ensures stable data transmission—even in the presence of vibrations, dirt, and moisture. The connectors can also be used in hard-to-reach areas, such as lighting and camera control systems on tractors, where installers often have no visual contact.

The railway industry also benefits from the M12 bayonet system, as the bayonet lock provides high resistance to shock and vibration—a crucial factor in applications subject to strong mechanical stress.
In rail vehicles, where constant vibrations and dynamic movements are the norm, the reliable locking mechanism ensures permanently stable connections without unintentional disconnection.

Additionally, the new series meets the requirements of the European standard IEC 61373:2010, Class 1B.

Advantages:

• Tool-free, safe, fast and tactile three-point bayonet locking system
• The bayonet lock allows complete contacting without the use of a torque wrench, thus errors during the production process can be avoided
• Coupling sockets are 100 % backwards compatible with standard M12x1
• Various standardized installation heights
• Data transmission rate up to 10 Gbit/s
• 360° shielded
• Protection class IP65, IP67, and IP69K
• Everything from a single source – from the device installed in the field to the associated processing unit
• Shock and vibration-proof according to railway requirement IEC 61373:2010-10, Class 1B

Fields of application:

• Automation technology
• Drive technology
• Enclosures and device connections
• Mechanical engineering
• Industrial interfaces
• Communication technology
• Security and monitoring systems
• Agricultural and construction machinery
• Transportation industry
