NP-20-21 – Papayo
- 2,401 g/t silver equivalent (216.0 grams per tonne (“g/t”) silver, 21.60 g/t gold, 1.91% lead and 6.02% zinc) over 1.0 metres (“m”) true width from 129.8 m and,
- 331 g/t silver equivalent (207.3 g/t silver, 1 g/t gold, 0.56 % lead, and 1.32 % zinc) over 1.49 m true width from 163.8 m
Note: All numbers are rounded and widths represent downhole lengths. Silver equivalent is calculated using the following formula: Silver-equivalent = ((Au_g/t x 52.48) + (Ag_g/t x 0.5289) + (Pb_ppm x 0.0013) + (Zn_ppm x 0.0013)) / 0.5627). Metal price assumptions are $17.50 g/t silver, $1,700 g/t gold, $0.75 pound lead and $0.85 pound zinc, recoveries assumptions are 96% gold, 94% silver, 78% lead and 70% zinc based on similar deposit types. The Company is disclosing results on a silver equivalent basis due to the overall silver dominant nature of mineralization at the Panuco project.
Vizsla President and CEO, Michael Konnert, commented: “Drilling at Papayo continues to deliver high grade results that expand the strike length to 300m and mineralization remains open in all directions. The Company is rapidly expanding the early drill successes at Panuco to prioritise those with potential to host large volumes of mineralization and move on from smaller zones. Expanding Papayo will remain a focus while the Company is moving away from San Carlos where very wide, but lower grade vein intervals have been intercepted to date. This rig has commenced drilling new targets along the Cordon del Oro vein corridor.”
Papayo Drilling detail

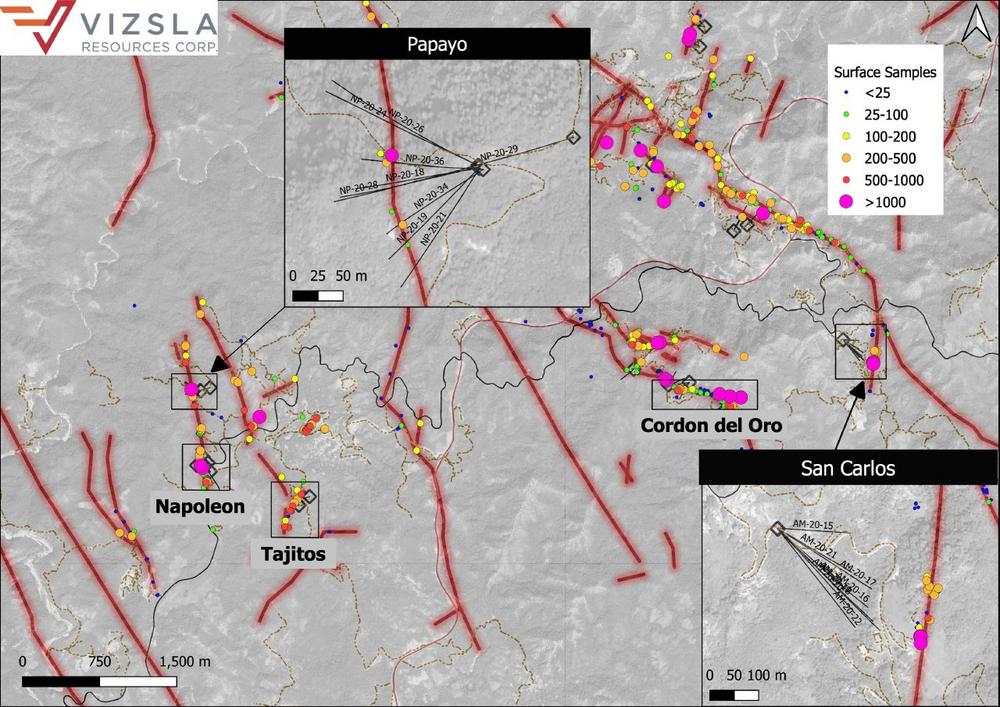

Drilling has continued to expand the known extents of mineralization at Papayo. The Company is systematically stepping out from the better intercepts and the mineralization remains open. Recent drilling has been expanding the vein below and on both sides of the discovery hole area and have identified and defined a second parallel vein of similar geology and grade. The drill program will continue to test the extents of the structure around the significant grade intersections in NP-20-19 and NP-20-21.
The Napoleon structure is hosted in weakly magnetic microdiorite and trends roughly north – south for over 2,000m of strike. The structure hosts two main quartz veins that are separated by 10 to 20m, and dips steeply to the east. Between the two main veins are a series of smaller splay veins with variable orientations, that are related to opening along the structure under strike slip movement. The two main veins have a variable true width of 0.4 to 15.3 m and are usually hosted next to the main fault structure, though occasionally also occur outside of the fault.
The two main veins are multi-episodal quartz veins, with sections of massive white to grey quartz as well as local brecciation with clasts of grey quartz, white vein quartz and/or wallrock fragments. The grey quartz is discoloured due to the presence of very fine-grained argentite. A later breccia cuts these earlier phases that is grey quartz supporting polymictic clasts of grey and white quartz along with strong chlorite and fine to medium grained pyrite, sphalerite and galena. Other smaller quartz veins have been cut in both the hanging wall and footwall that appear to be splays with less continuity.
San Carlos Drilling detail
Drilling has continued around discovery hole AM-20-16 to expand the known mineralization. The San Carlos structure is wide lower grade bulk tonnage target with an average width of 11.5m and a range from 3.35m to 22.8m.
The San Carlos segment of the Animas Vein Corridor is a roughly north-south trending vein that dips approximately 50 degrees to the west. This represents a significant change in orientation compared to the general northwest trend of the Animas corridor and is likely related to a north – south trending structure that offsets the main trend and localizes mineralization at San Carlos. The geological sequence includes an intrusive diorite unit that structurally overlies an andesitic lapilli tuff unit. The lower contact of the lapilli tuff appears to have been intruded by another diorite unit, and the entire package has been intruded by various andesite to rhyolite dikes.
The mineralized zone of San Carlos is bounded by faults, which typically have clay fault gouge and are themselves bounded by crackle breccia zones away from the mineralization. The mineralized zone is commonly quite wide (up to 30m) and consists of white quartz hydrothermal breccias with variable amounts of host lithic clasts or locally re-brecciated quartz vein clasts. Multiple pulses of veining have occurred with the best grade material having a grey quartz matrix supporting white or grey vein clasts that cuts the main white quartz breccia zone. The grey quartz has very fine-grained argentite and fine-grained disseminated pyrite, while the white quartz material has lesser irregular amounts of both argentite and pyrite. Locally there are patches with amethyst that is likely a later fracturing event. Once past the footwall fault, there is a zone of decreasing crackle breccia with quartz fill giving way to calcite fill and with weak chlorite alteration of the host diorite or andesite.
About the Panuco project
Vizsla has an option to acquire 100% of the recently consolidated 9,386.5 Ha Panuco district in southern Sinaloa, Mexico, near the city of Mazatlán. The option allows for the acquisition of over 75 km of total vein extent, a 500 tpd mill, 35 kms of underground mines, tailings facilities, roads, power and permits.
The district contains intermediate to low sulfidation epithermal silver and gold deposits related to siliceous volcanism and crustal extension in the Oligocene and Miocene. Host rocks are mainly continental volcanic rocks correlated to the Tarahumara Formation.
Quality Assurance / Quality Control
Drill core and rock samples were shipped to ALS Limited in Zacatecas, Zacatecas, Mexico and in North Vancouver, Canada for sample preparation and for analysis at the ALS laboratory in North Vancouver. The ALS Zacatecas and North Vancouver facilities are ISO 9001 and ISO/IEC 17025 certified. Silver and base metals were analyzed using a four-acid digestion with an ICP finish and gold was assayed by 30-gram fire assay with atomic absorption (“AA”) spectroscopy finish. Over limit analyses for silver, lead and zinc were re-assayed using an ore-grade four-acid digestion with AA finish.
Control samples comprising certified reference samples, duplicates and blank samples were systematically inserted into the sample stream and analyzed as part of the Company’s quality assurance / quality control protocol.
The Company’s disclosure of technical or scientific information in this press release has been reviewed and approved by Stewart Harris, P.Geo., an independent consultant for the Company. Mr. Harris is a Qualified Person as defined under the terms of National Instrument 43-101.
