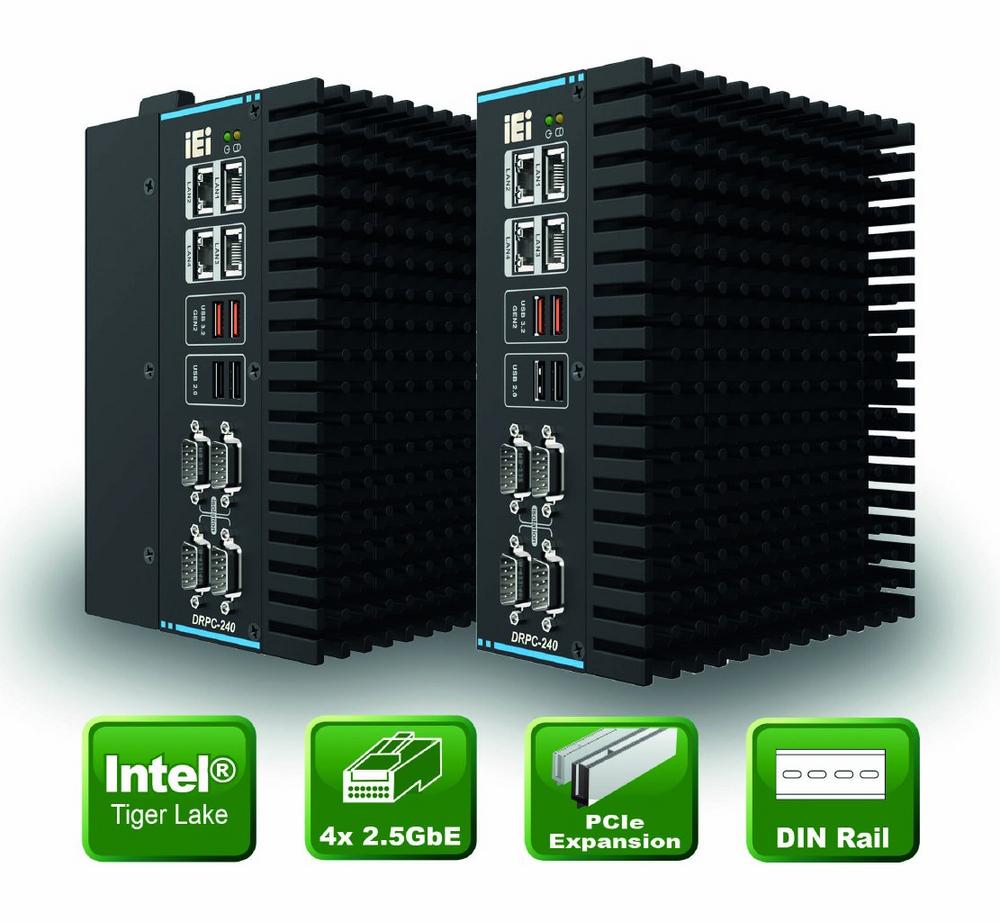

With the new DRPC-240-TGL, ICP Germany offers a modular embedded system for DIN rail use. The standard model can be extended by a PCIe expansion box. This provides the user with a classic PCI Express x4 slot for add-on cards. Additional add-on cards can be operated on the M.2 3042/3052/3080 and the M.2 2230 slot. The DRPC-240-TGL is offered with Intel® CeleronTM 6305, Intel® Core-i5-1145G7E and Intel® Core-i7-1185G7E processors. The DRPC-240 is equipped with 8GB RAM as standard and can be expanded to a maximum of 64GB on the two DDR4 SO-DMM slots. A 2.5" SATA 6G drive bay is available for storage media. Furthermore the DRPC-240 offers one i225LM 2.5GbE, three i225V 2.5GbE with TSN/TCC functionality, two USB3.2 and USB2.0 each, as well as two RS-232 and RS-422/485 each with 2.5kV isolation, six digital inputs, six digital outputs, one HDMI with 3840×2160 resolution and one display port with 4096×2304 resolution. The system is designed for fanless use, and can be expanded with an external fan module if needed. The DRPC-240 can be supplied with an input voltage of 12V~24VDC via the three-pin terminal block. On customer request, ICP delivers the DRPC-240-TGL pre-assembled and with integrated operating system as a ready-to-use system.

ICP. Industrial Computer Products …by people who care!

Specifications

• DIN-rail PC with 11th generation Intel® CoreTM i5/i7 and Celeron® CPU
• 64GB DDR4 SO-DIMM memory
• 4-way 2.5 GbE LAN with TSN/TCC functionality
• Expansion box for plug-in cards with PCIe x4 slot
• 5" SATA 6Gb/s SDD drive
• 2 2230, M.2 3042/3052/3080 slot
• Isolated RS-232 and RS-485 interfaces
• DP and lockable HDMI graphics port
• Power input: 12V~28VDC
• Operating temperature: -20°C~60°C

Applications

• Automatisierung
• Industrielle Steuerung
• Datenlogger
• Industrie PC

Product Link

https://www.icp-deutschland.de/index.php?lang=0&cl=alist&searchparam=drpc-240

Datasheet

https://files.icp-deutschland.de/produkte/KC003056/web/icp/DRPC-240-datasheet-20220215.pdf
